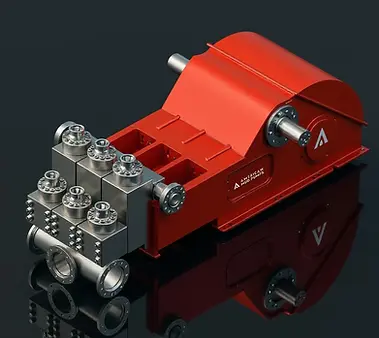

American Mud Pumps® provides smooth Triplex performance and high efficiency. High-performance steel fabricated power end with steel herringbone gears. Also, anti-friction roller bearings throughout. Its strong engineering provides a higher efficiency in less space.
The pump’s light weight and flexible design make it easily adaptable to a variety of rig configurations and drilling requirements and conditions changes throughout. Its strong engineering provides a higher efficiency in less space
Features
- ● Minimum weight/maximum performance with continuous duty life expectancy.
● High performance high strength steel fabricated power end with steel herringbone gears.
● Anti-friction roller bearings throughout.
● High strength structural steel frames.
● Forged steel eccentric crankshaft.
● Double (redundant) failsafe internal lube system.
● Metal to metal liner lock.
● High capacity liner wash system.
Technical specification data
Input horsepower rating
Pump speed
Stroke length
Maximum piston size
Fluid end working pressure rating
Discharge connection size
Suction connection size
Crankcase oil capacity
Liner wash capacity
Internal gear ratio
Pump weight complete (Less skid)
Overall dimensions (L x W x H)
1600
140
12.00”
6.75”
7,500 Psi
5.00” Flange
12.00” Flange
120 Gallons
85 Gallons
4.41: 1
38,500 Lbs
173.12” X 86.56” X 65.93”
